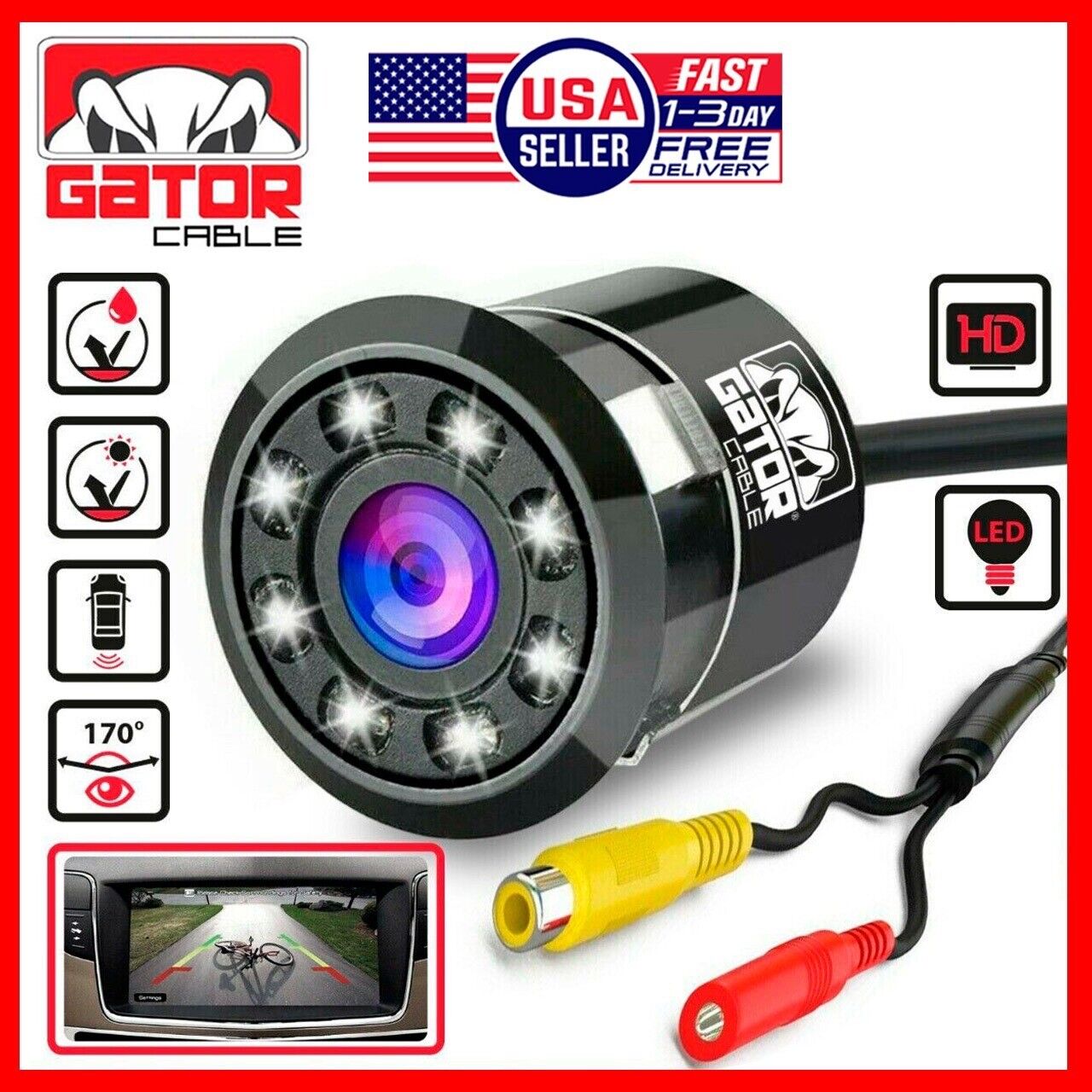

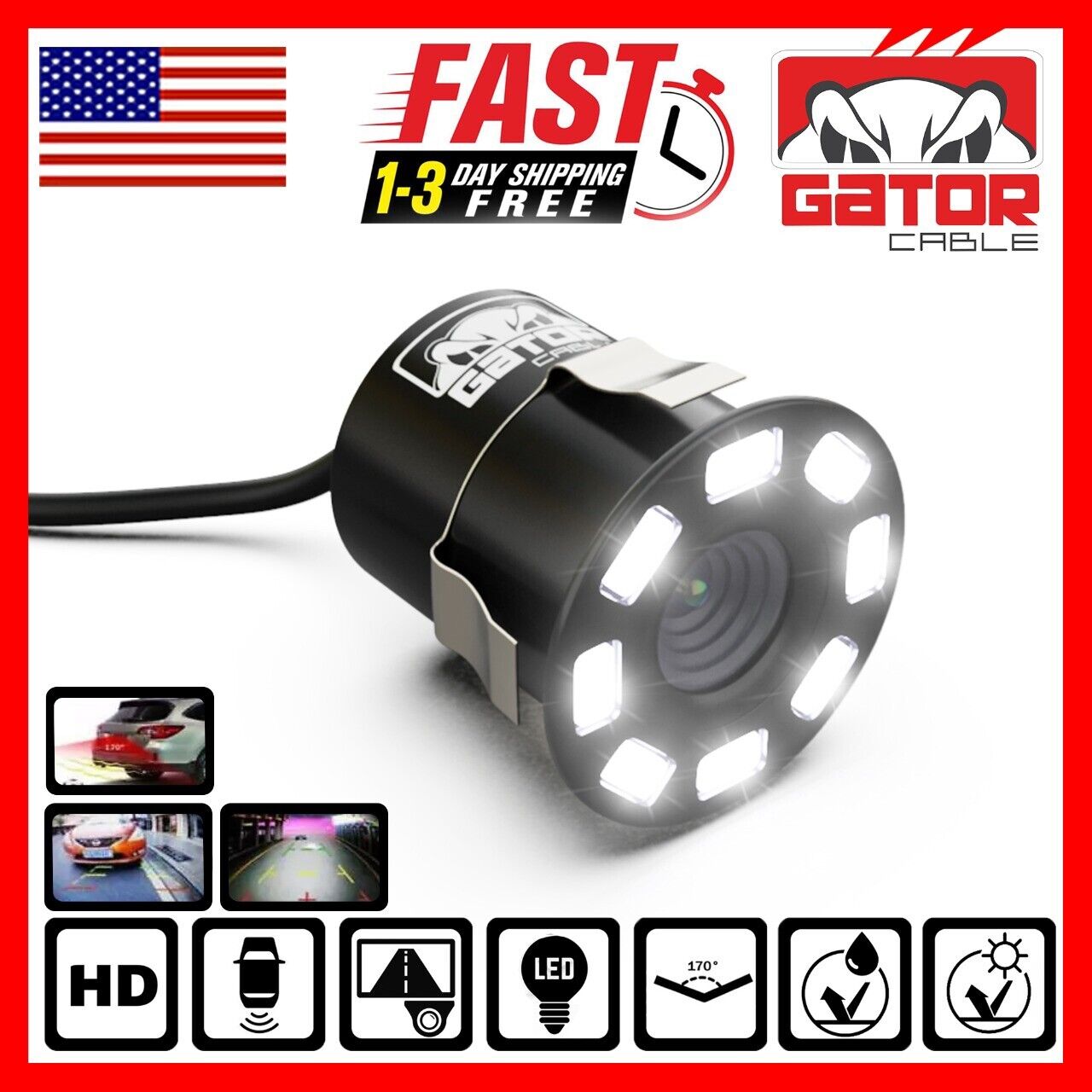

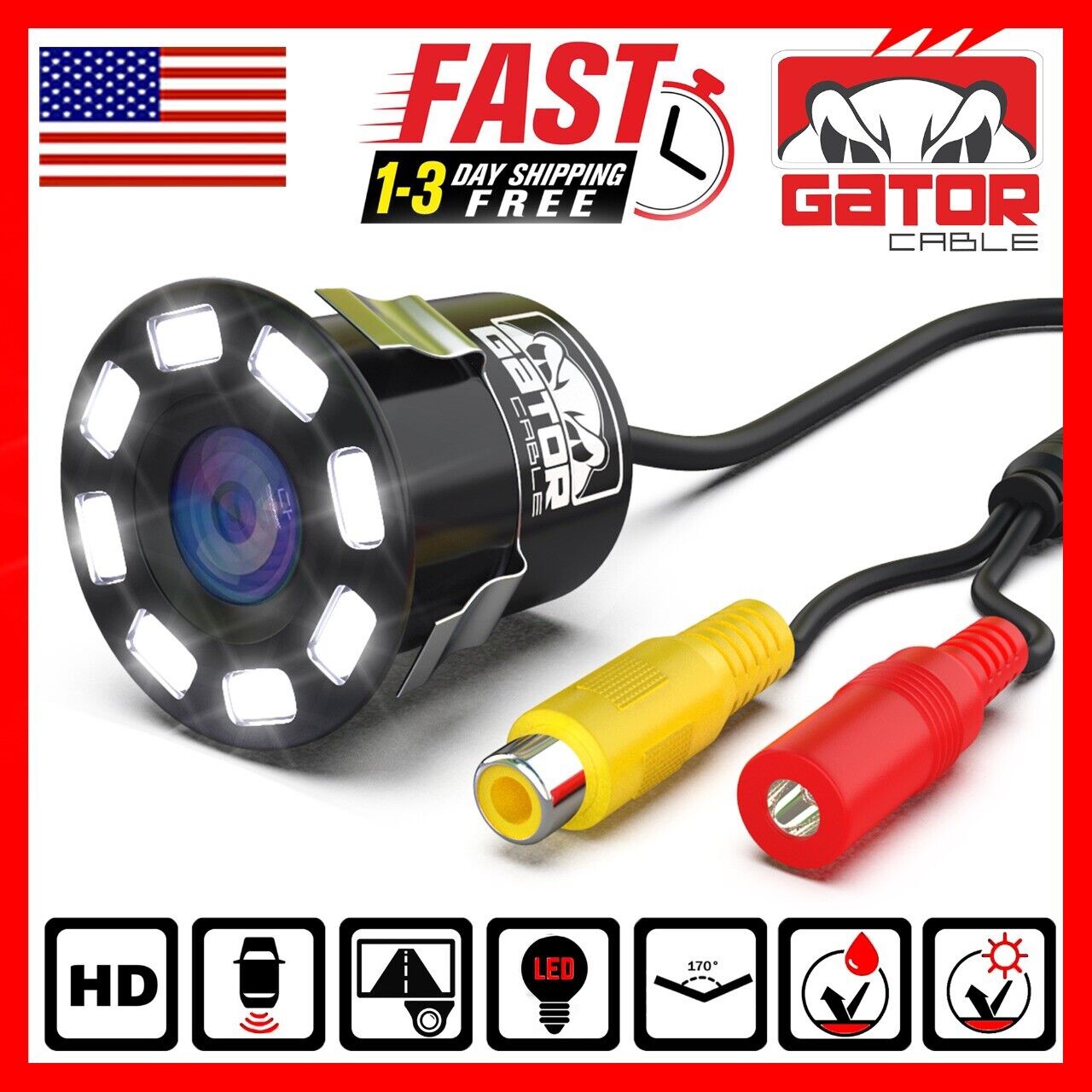

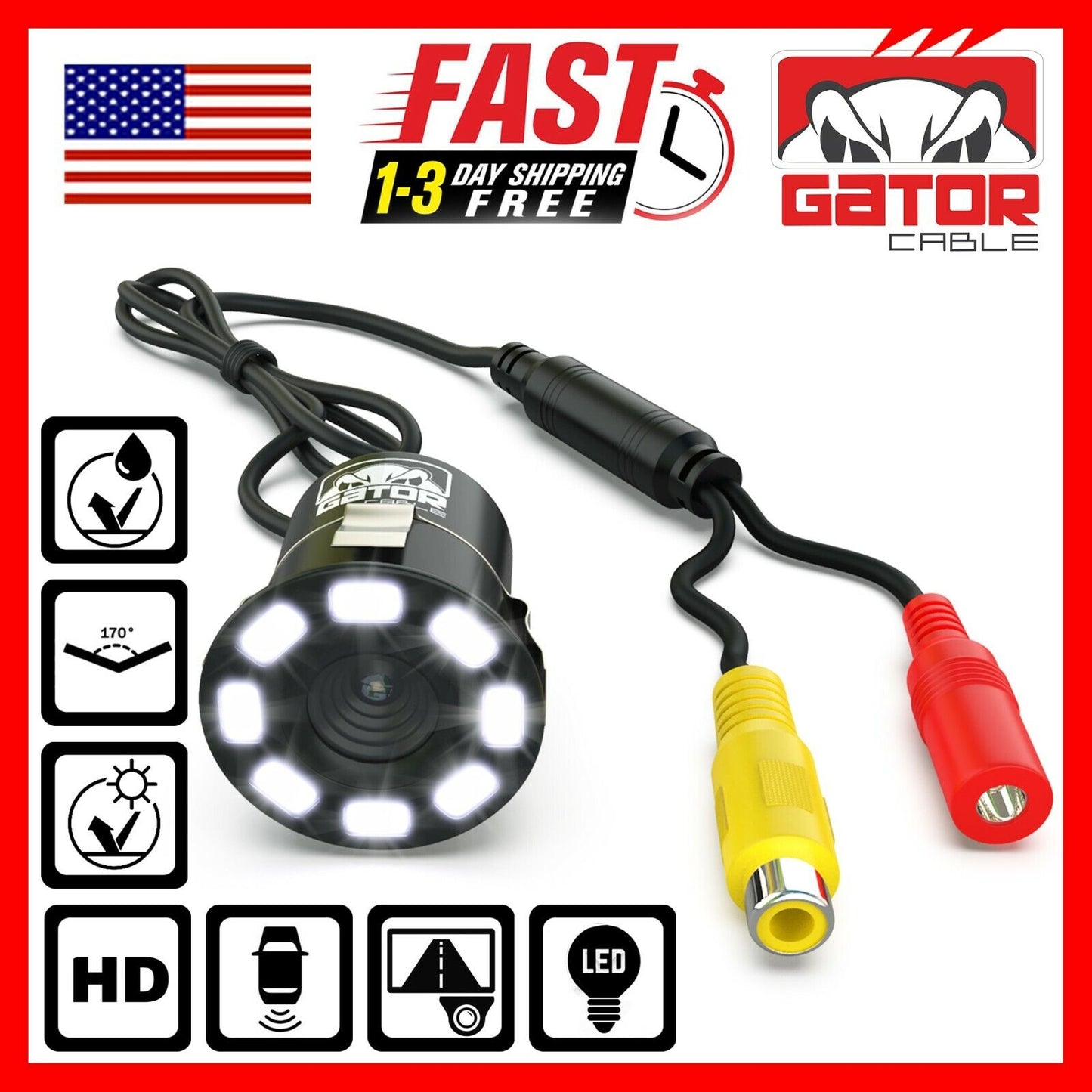

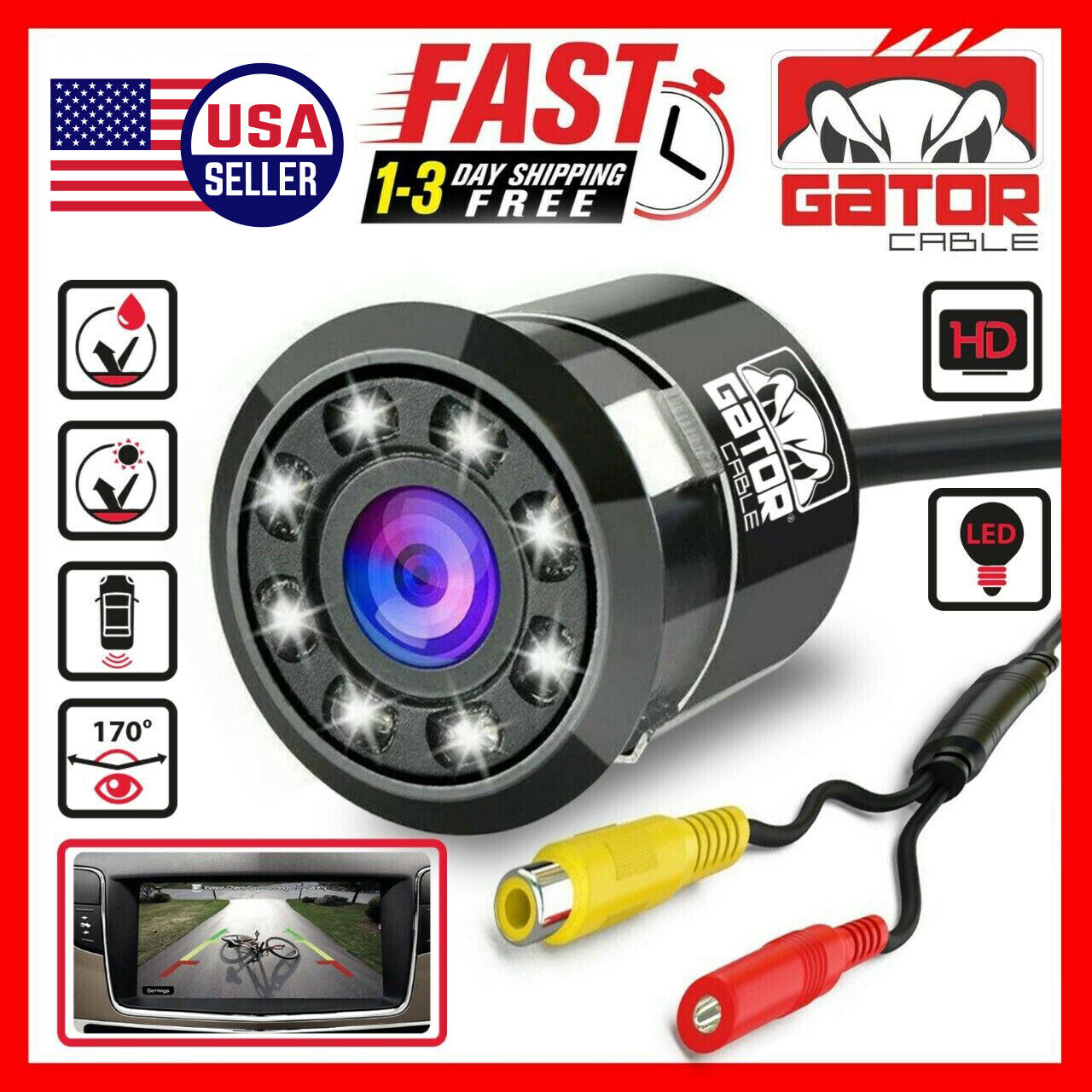

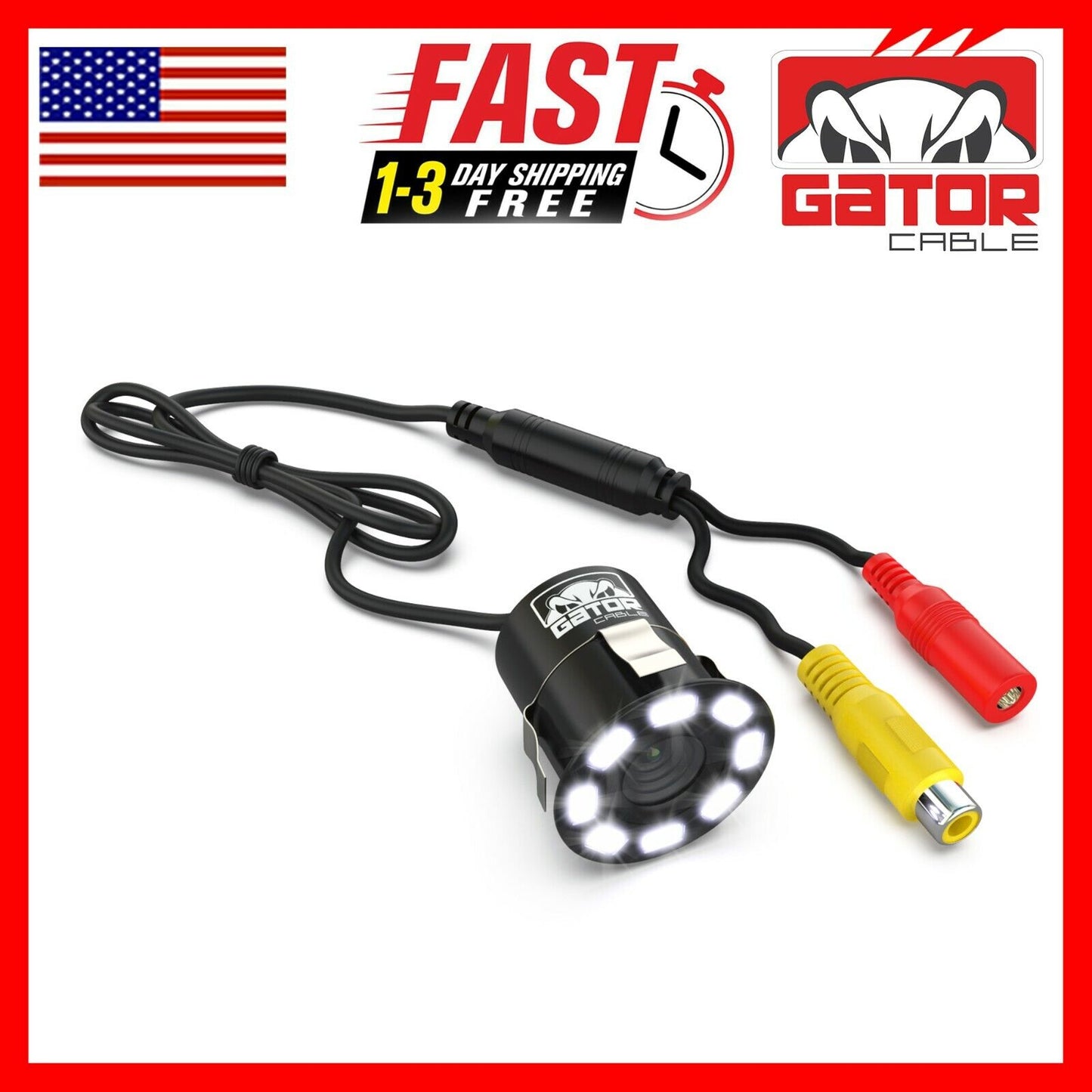

Car Rear View Backup Reverse Camera 170° CMOS 8 LED HD Night Vision Waterproof

Car Auto Rear View Backup Camera
Reverse Parking Anti Fog & Waterproof
170° CMOS with 8 LED Lights and Night Vision

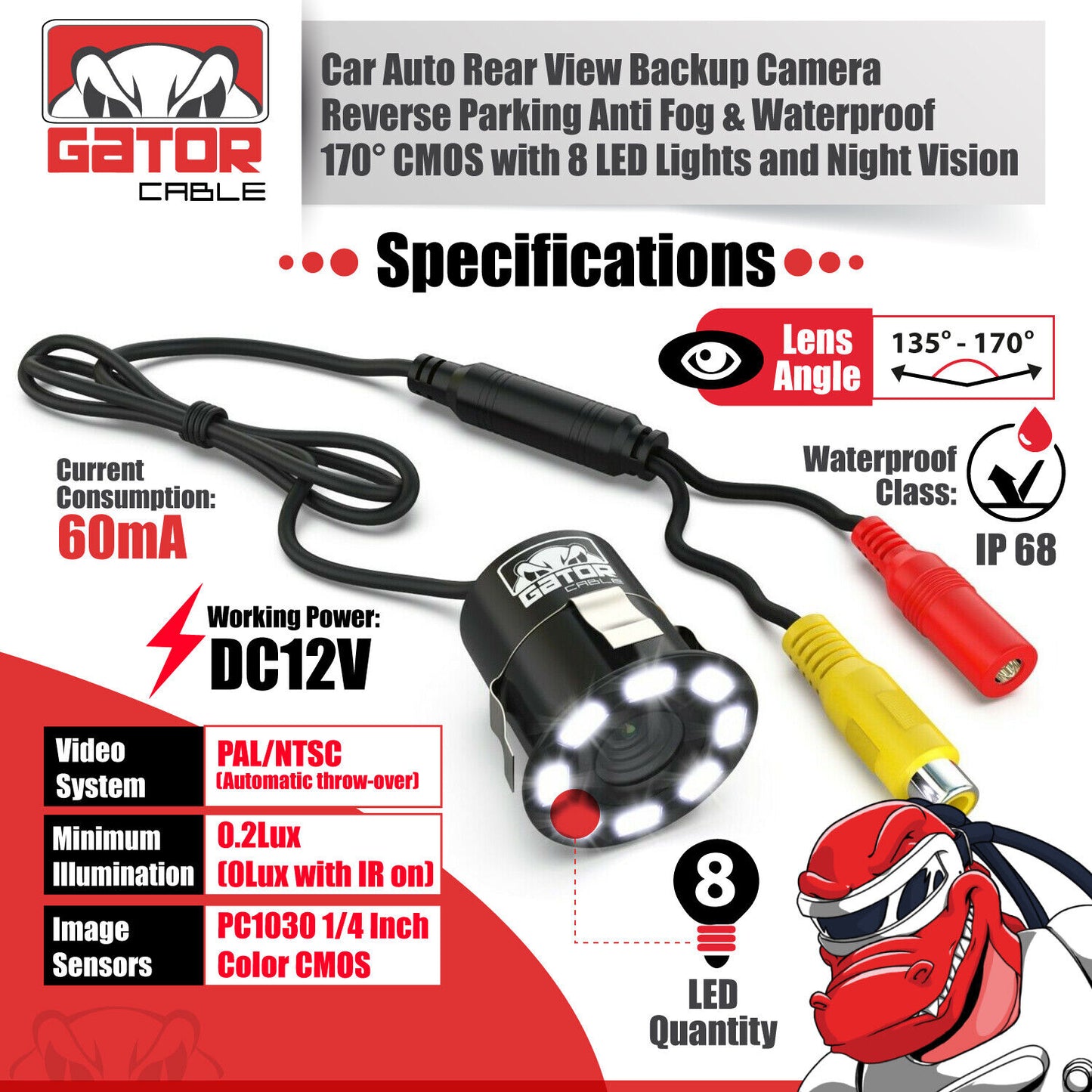

 Specifications:

• Image Sensors: PC1030 1/4 Inch Color CMOS

• Sensor Area: 4.08 x 3.12mm

• Effective Pixels: 648 x 488 Pixels

• LED Quantity: 8 IR LED

• Lens Angle: 170 / 135 degrees

• Image pipeline feature: Auto exposure, AWB, AGC, Auto flicker detection and cancellation

• Video System: PAL/NTSC(Automatic throw-over)

• Minimum Illumination: 0.2Lux(0Lux with IR on)

• Scanning System: 2:1 Interlace

• Resolution : 420TV lines

• Electronic Shutter: 1/60(NTSC) / 1/50(PAL)~1/1000s

• Gamma Coefficient: 0.45

• S/N Ratio: >45.6db

• Dynamic Range: > 63.5db

• Waterproof Class: IP 68

• Operation Temperature: -20℃~ +75℃

• Storage Temperature: -40℃~+85℃

• Video Output: RCA connector, 1.0vp-p, 75Ohm

• Working Power: DC12V

• Current Consumption:60mA

• Video cable length:  9 meters 19.75 Feet

• Power supply cable length: Approximately 1.2m/ 47.2 inch

• Drill Hole Diameter: 18.5mm/0.73 inch

• Camera Dimension: 25*21*18.5mm/0.98*0.83*0.73 inch

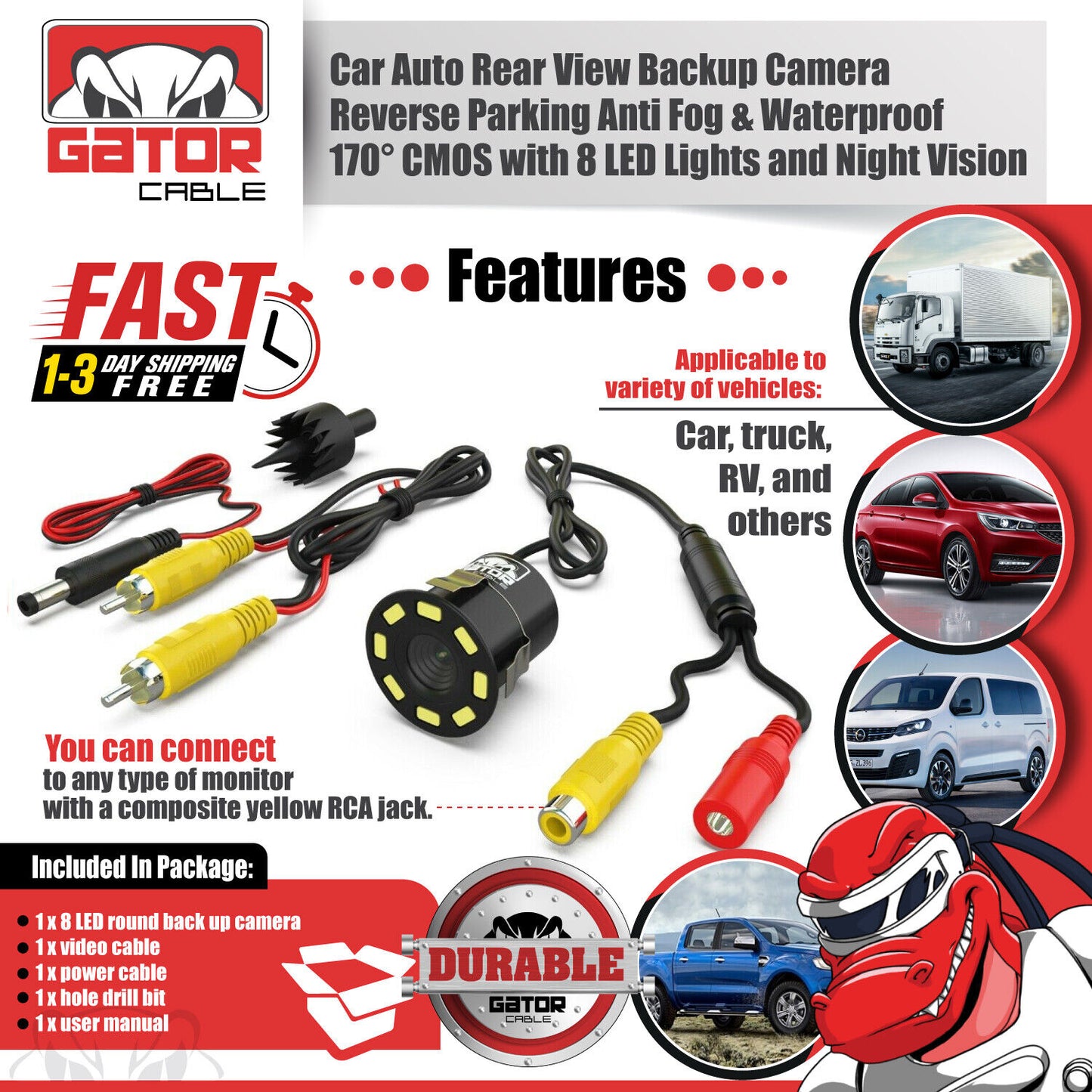

Features:

1.  Unit has 8 LED Lights which will result in a a clear view at night.
2.  Compatible with DVD automobile navigation.
3.  170 degree wide angle view.
4.  Unit has a CCD core to project a more clear video and image.
5.  Unit is waterproof, shockproof and dust proof.
6.  Professional quality with longer service time.
7.  Drill Hole Style Car HD Rear View Camera, gives you a full view of the back of your car when you are driving.
8.  With 8 LED Infrared Night Vision ensures the car driving safety when backing up or parking at night.
9.  Helps to avoid incidents, accidents abrasion and ensure your safety.
10.  Anti fog glass, CMOS imaging sensor.
11.  Support NTSC/PAL video system.
12.  With the high sensitivity, you can get rid of the poor rear vision.
13.  High definition and up to 170 degrees wide viewing angle.
14.  Use high quality Chip to make vivid and clear images.
15.  Compact design, easy to install and operate.
16.  IP68 waterproof design, shock-proof and anti-jamming functions.
17.  Applicable to variety of vehicles: car, truck, RV, and others.
18.  Can connect to any type of monitor with a composite yellow RCA jack.

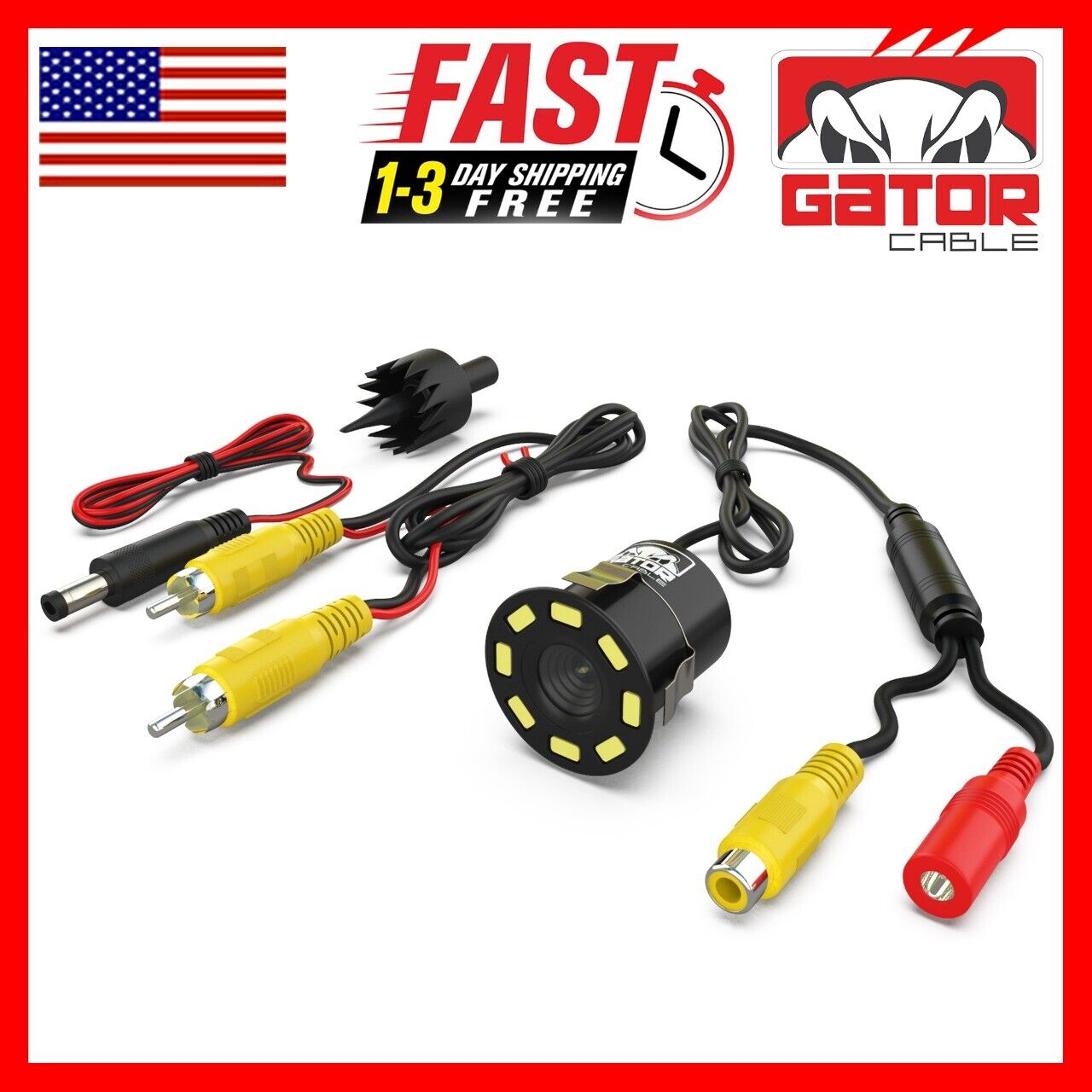

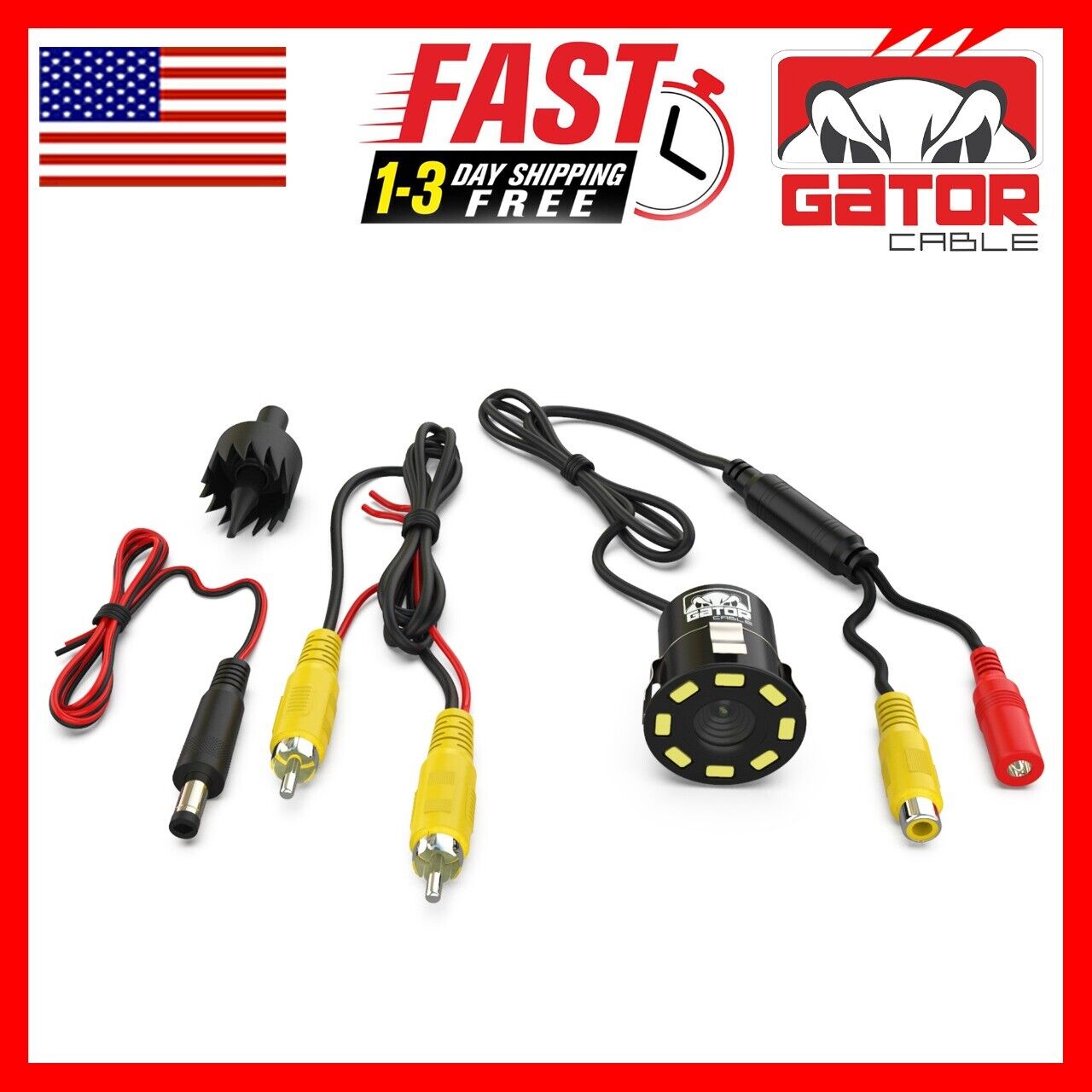

Package Contents:
1 x 8 LED round back up camera
1 x video cable
1 x power cable
1 x hole drill bit
1 x user manual
